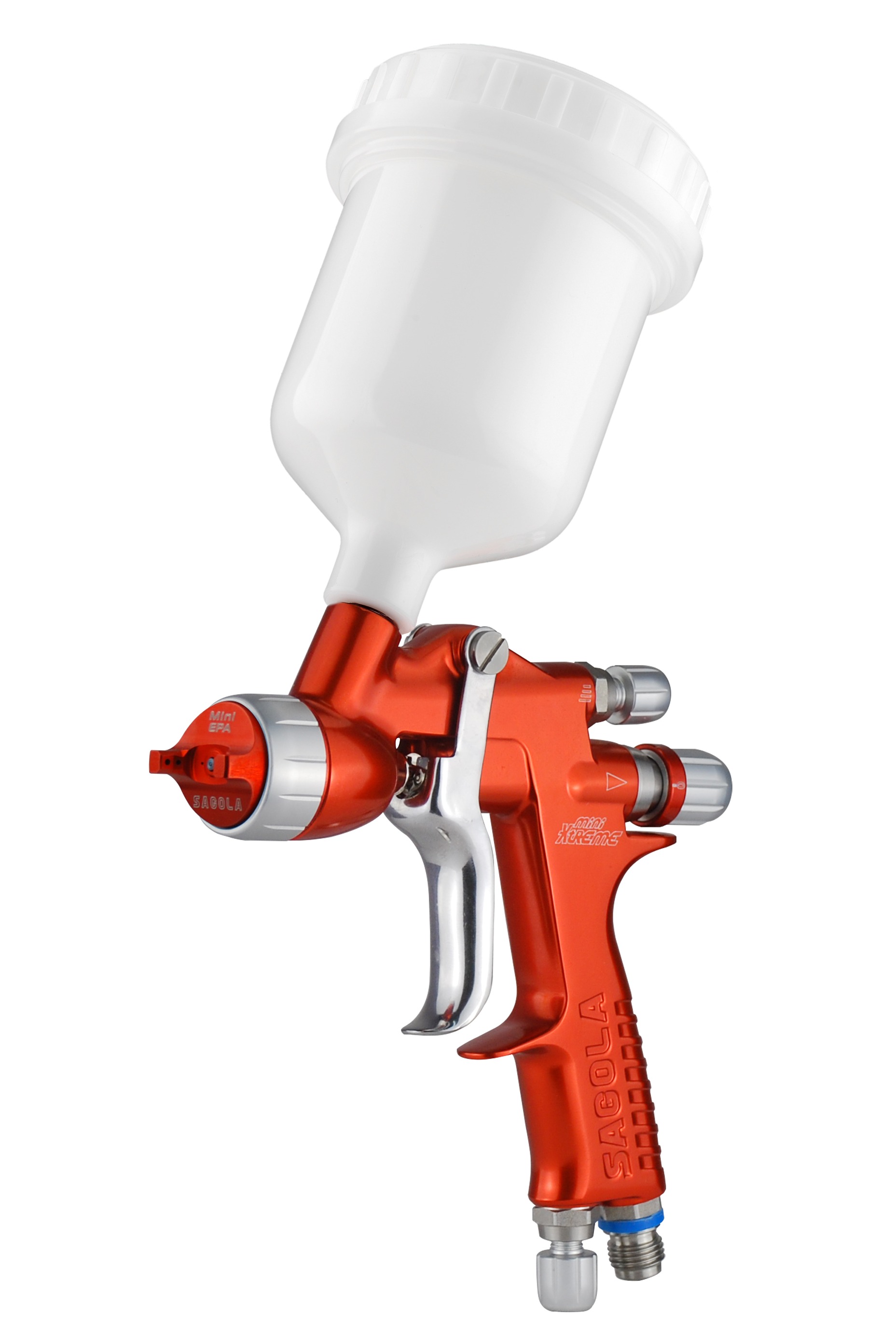

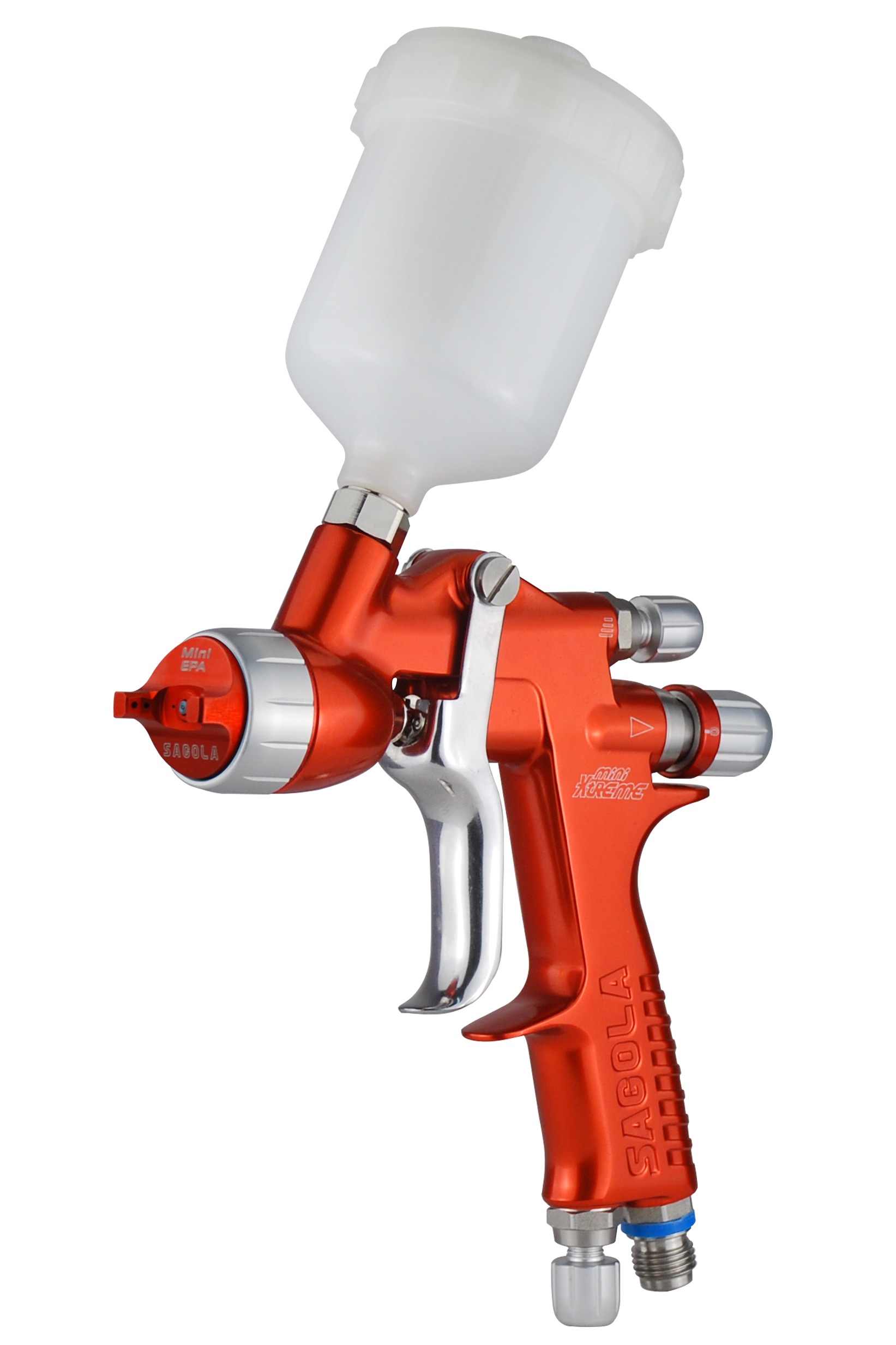

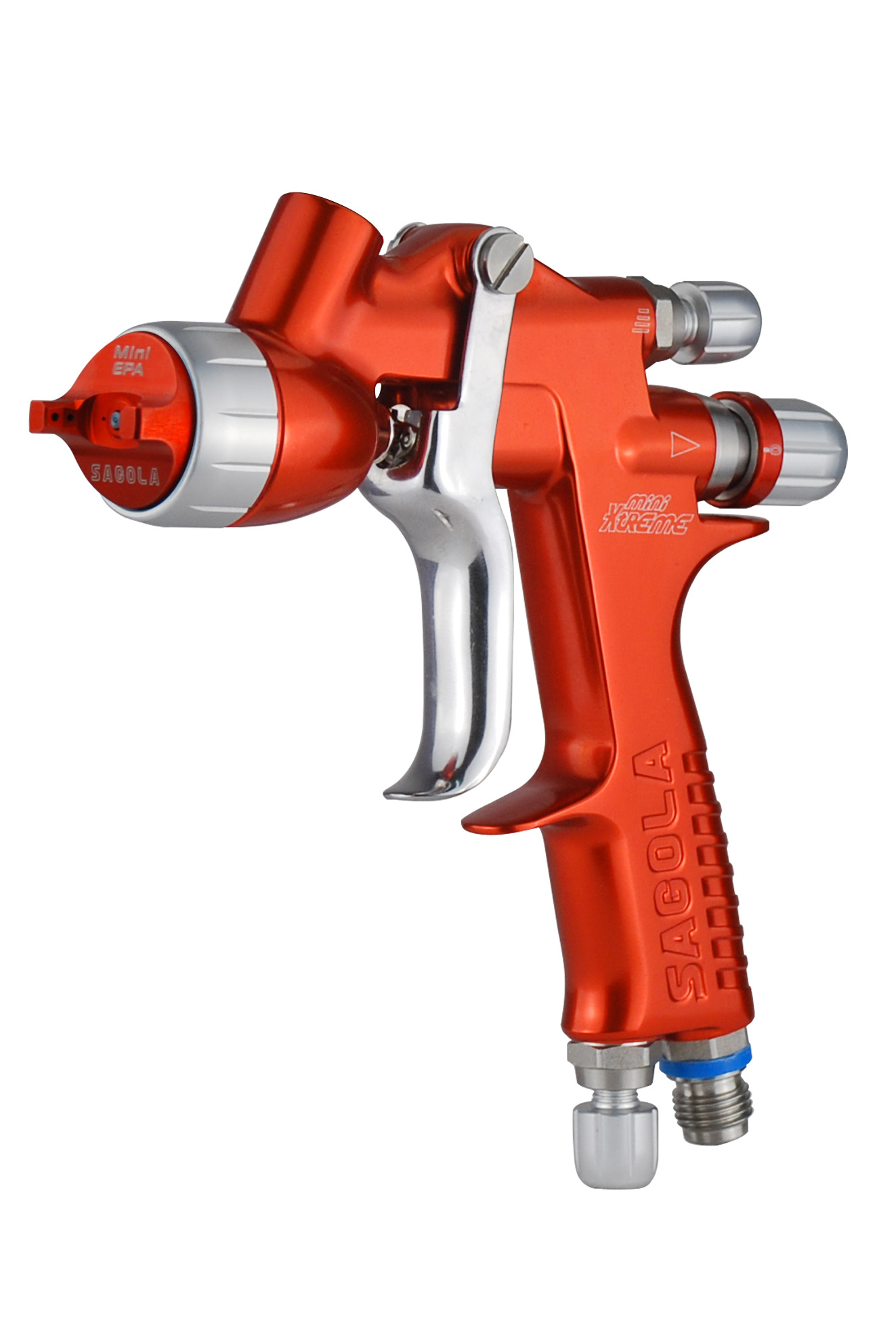

“Control” is the word that best defines the new SAGOLA Mini Xtreme.
It ensures the perfect air-paint ratio for every situation. Work with the correct fan pattern sizes without running the risk of overloading and wrong paint particle sizes. It reduces mist, saves paint and perfectly defines the work zone.
Fan patterns designed to obtain the best drying times with the finest finish, always with minimum pressures.
Specific high-transfer aircaps with an exclusive air diffusion system to achieve a smooth spraying with low pressure.
Designed without O-rings
There are no gaskets in couplings between air and paint. Designed without O-rings in the air system.
Product and fan pattern regulators
High precision aluminium product and fan pattern regulators designed for easy handling even when wearing gloves.
Numbered product regulator
For totally accurate paint control.

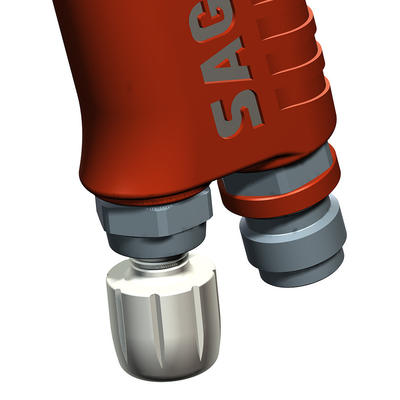

Air-flow regulator
High precision air-flow regulator included. Solvent-proof gaskets.
Connection coupling
M12 male - 1/4” female

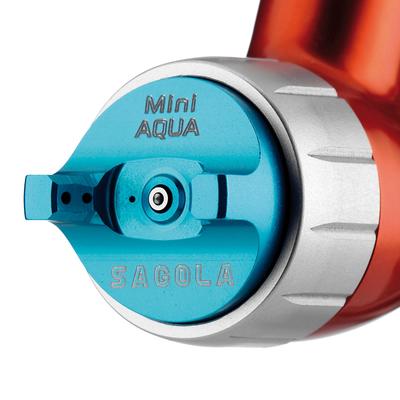

| Nozzle Mini Aqua | |||
|---|---|---|---|
|
0.80 | Special for waterborne paints. Xtreme finishes | |
| 1.00 | Waterborne paints | ||
| 1.20 | Waterborne paints. High speed | ||

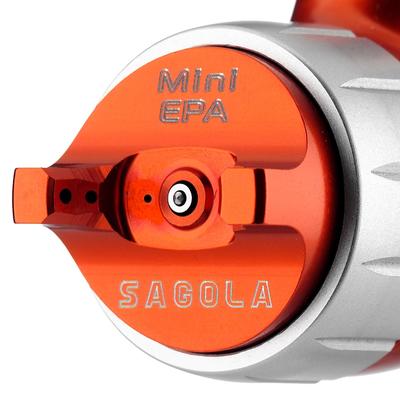

| Nozzle MiniEPA | |||
|---|---|---|---|
|
0.80 | Fine feathering, basecoats | |
| 1.00 | Retouching. feathering. Waterborne and solventbased basecoats. Clearcoats and dyes | ||
| 1.20 | Clearcoats, UV paints, Extremely high finish quality. | ||

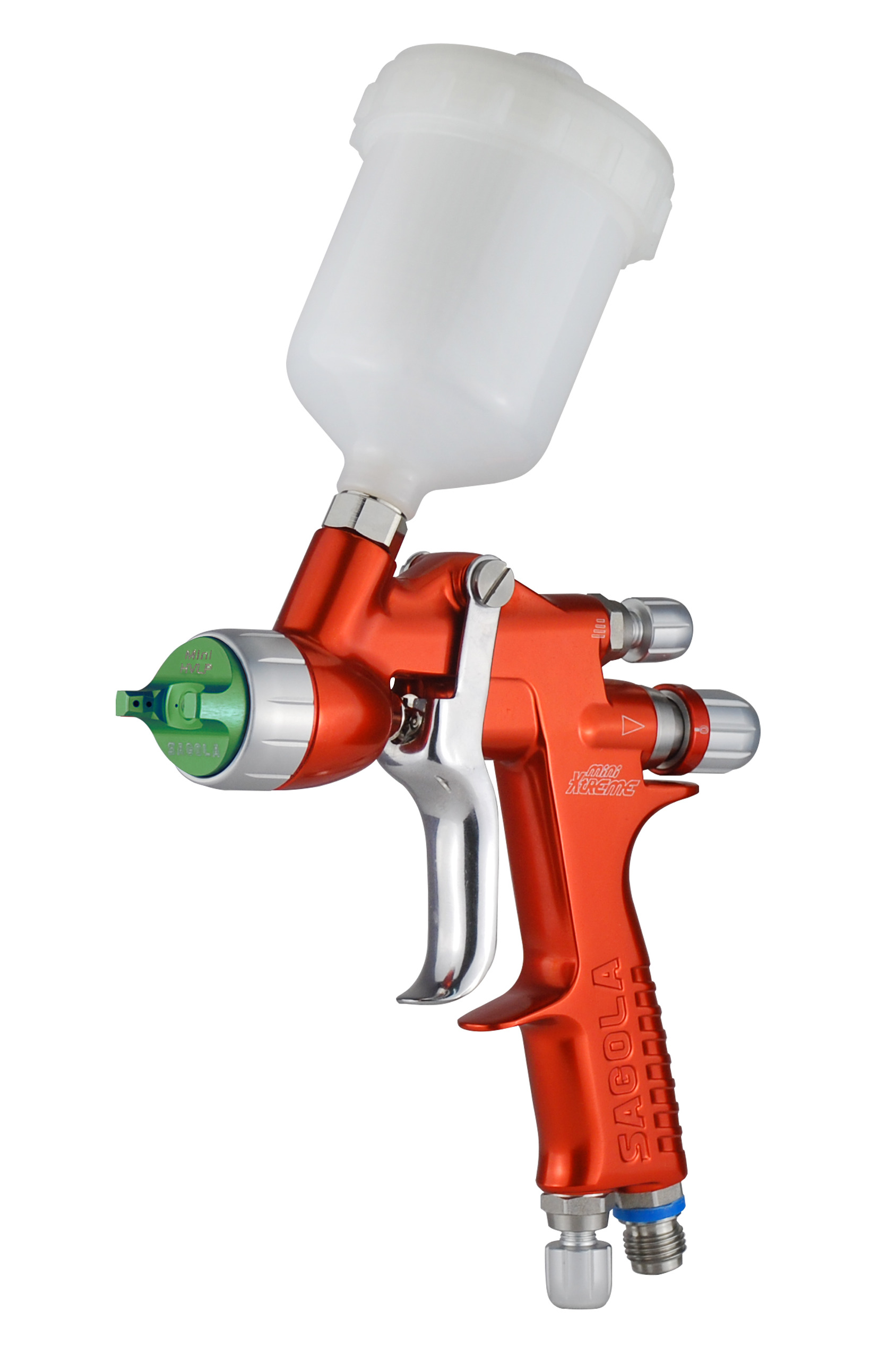

| Nozzle Mini HVLP | |||
|---|---|---|---|
|
1.30 | Especially for dyes: wood, tannery products, footwear. | |
| 1.40 | Finishes, dyes | ||
| Nozzle Mini TECH | |||
|---|---|---|---|
|
0.60 | Primers for leather with low viscosity products. | |
| 1.00 | Lettering and small retouches. | ||
| Weight with cup | 505g |
| Air inlet couplings | BSP 1/4” M |
| Dimensions | 29 x 16 x 11 cm |
| Cup capacity | 500 ml |
| Deposit with removable anti-drip system | Yes |
| Incorporates 100-mesh paint filter | Yes |
| Design pressure | 8 bar |
| Maximum recommended inlet pressure (working pressure) | 2,0 bar |
| Maximum recommended application distance: Mini EPA | 15 - 18 cm |
| Maximum recommended application distance: Mini HVLP | 10 - 15 cm |
| Maximum recommended application distance: Mini Tech | 15 - 18 cm |
| Maximum air consumption: Mini EPA | 190 L/min |
| Maximum air consumption: Mini HVLP | 325 L/min |
| Maximum air consumption: Mini TECH | 52 L/min |
| Materials in contact with the product | INOX, anodised aluminium, POM, Teflon, Nylon |
| ATEX | (Ex) II 2 GX |
| Code | Version |
|---|---|
| 10111801 | Spray Gun MiniXTREMEG 0.80[miniAQUA] |
| 10111802 | Spray Gun MiniXTREMEG 1.00[miniAQUA] |
| 10111803 | Spray Gun MiniXTREMEG 1.20[miniAQUA] |
| 10111804 | Spray Gun MiniXTREMEG 1.30[MINIHVLP] |
| 10111805 | Spray Gun MiniXTREMEG 1.40[MINIHVLP] |
| 10111806 | Spray Gun MiniXTREMEG 0.80[MINIEPA] |
| 10111807 | Spray Gun MiniXTREMEG 1.00[MINIEPA] |
| 10111808 | Spray Gun MiniXTREMEG 1.20[MINIEPA] |
| 10111809 | Spray Gun MiniXTREMEG 1.00[MINIHVLP] |
| 10111810 | Spray Gun MiniXTREMEG 1.20[MINIHVLP] |
| 10111811 | Spray Gun MiniXTREMEG 0.60[MINITECH] |
| 10111812 | Spray Gun MiniXTREMEG 1.00[MINITECH] |

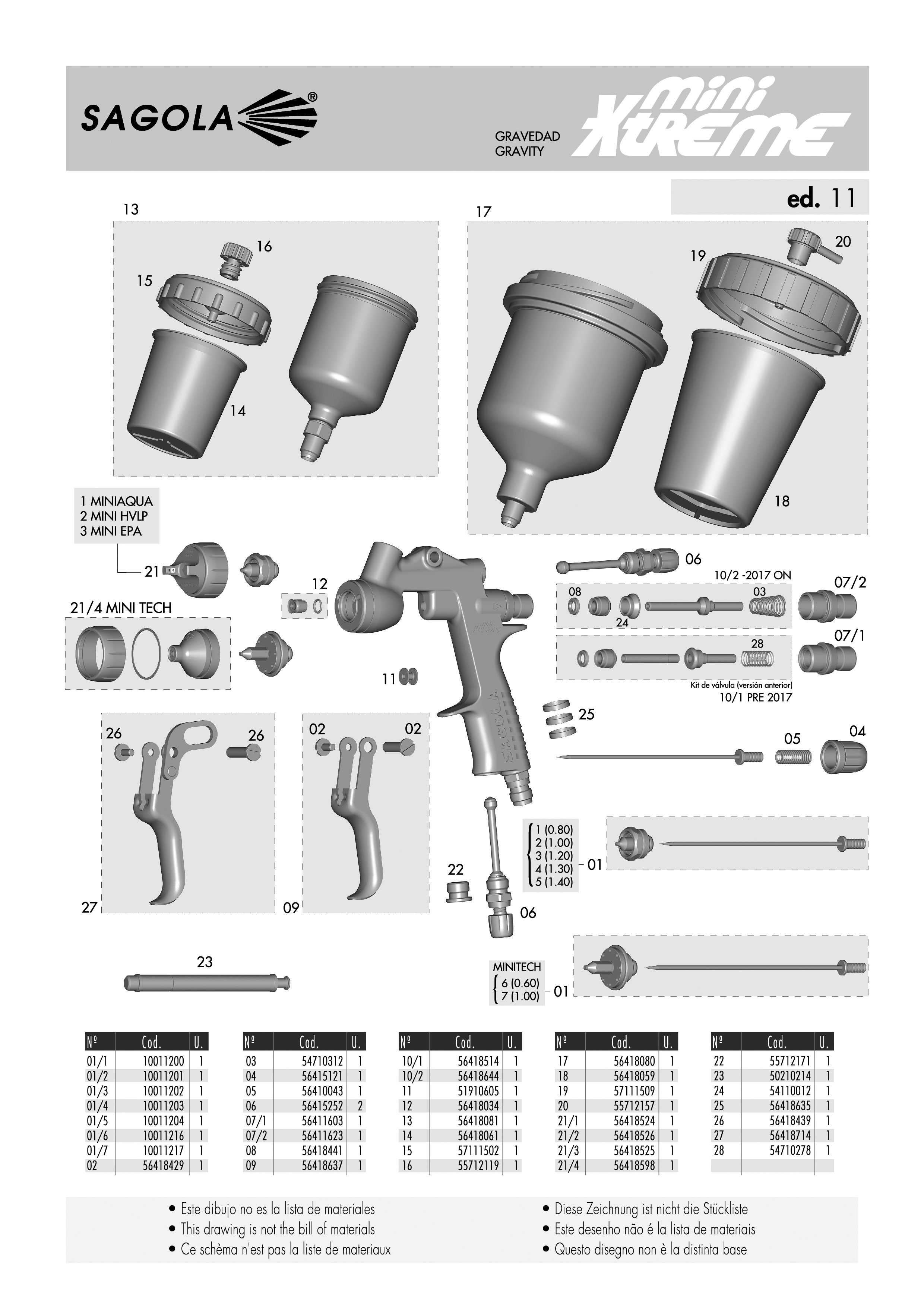

Mini Xtreme Gravedad
