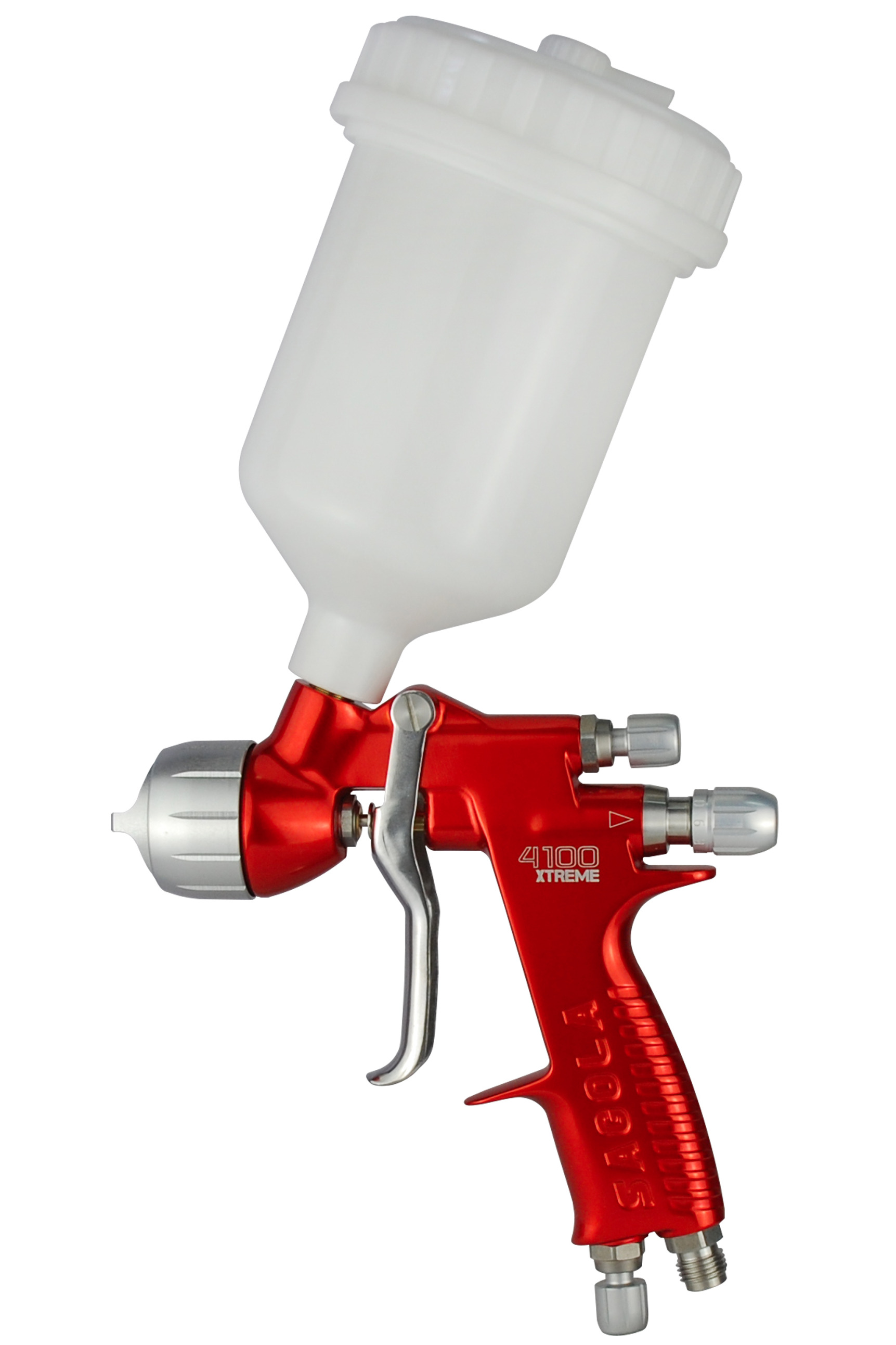

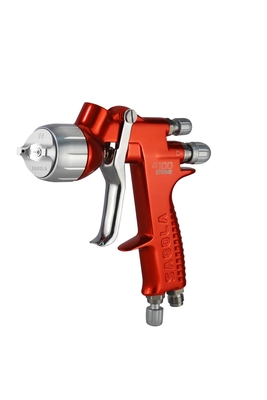

4100 Xtreme Gravity

New design of the range of Sagola 4100 gravity version.

Maximum robustness and reliability.

Ideal for painting large areas with extreme finishing in sectors such as automotive, industrial vehicles and all types of industrial machinery.

Nuevo body design, lightweight and ergonomic.

Anodized forged aluminum body. Maximum durability and minimum maintenance.

There are no gaskets in couplings between air and paint.

Machining of high technology.

Forged anodised aluminium body

Robustness and high protection against corrosion.

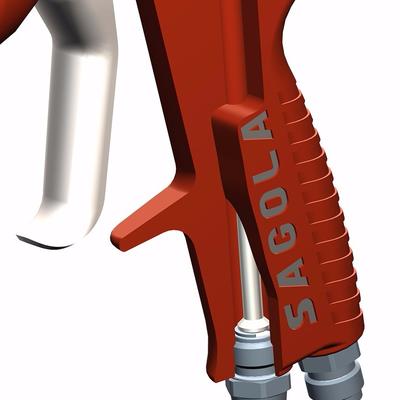

A perfect balance in the movements

More rounded, ergonomic and comfortable grip

New modern design of regulators

Without edges. Easy to clean.

Ultra-ergonomic design

Trigger and axle made in stainless steel.

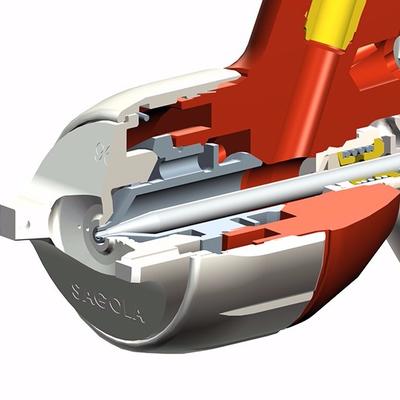

INOX

Noozle and Needle in INOX.
All racords in contact in the body made of Stainless steel.

Exclusive packing gland

One piece product packing nut.
Made in Stainless Steel.
Exclusive on the market.
With no joints to manupulate when disassembling for through cleaning of the paint part.

Nozzle 96
	1.30	Fluid finishes, metallics, dyes
	1.40	High quality finishes
	1.60	General finishes
	1.80	Primers and basecoats

Nozzle XT01
	1.30	Dyes
	1.40	General finishes
	1.60	High speed finishes

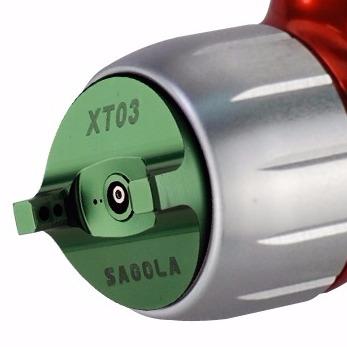

Nozzle XT03
	1.30	Dyes
	1.40	General finishes
	1.60	High speed finishes
	1.80	Primers and basecoats

Weight without cup	515 g
Dimensions	20 x 18 x 4,2 cm
Air inlet couplings	BSP 1/4” male
Cup capacity	650 ml
Deposit with removable anti-drip system	Yes
Incorporates 100-mesh paint filter	Yes
Design pressure	8 bar
Maximum recommended inlet pressure (working pressure)	2 bar
Maximum recommended application distance 62S/64S/96+	20 - 25 cm
Maximum recommended application distance XT01	18 - 20 cm
Maximum recommended application distance XT03 HVLP	12 - 15 cm
Air consumption 62S	310 L/min
Air consumption 64S	300 L/min
Air consumption 96+	250 L/min
Air consumption XT01	245 L/min
Air consumption XT03 HVLP	500 L/min
Materials in contact with the product	INOX, anodized aluminium, POM, Teflon and Nylon
ATEX	(Ex) II 2 GX

Code	Version
10142001	Spray Gun 4100 XTREMEGrav.1.40[96]
10142002	Spray Gun 4100 XTREMEGrav.1.60[96]
10142003	Spray Gun 4100 XTREMEGrav.1.80[96]
10142004	Spray Gun 4100 XTREMEGrav.1.30[XT01]
10142005	Spray Gun 4100 XTREMEGrav.1.40[XT01]
10142006	Spray Gun 4100 XTREMEGrav.1.60[XT01]
10142007	Spray Gun 4100 XTREMEGrav.1.30[XT03]
10142008	Spray Gun 4100 XTREMEGrav.1.40[XT03]
10142009	Spray Gun 4100 XTREMEGrav.1.60[XT03]
10142010	Spray Gun 4100 XTREMEGrav.1.80[XT03]
10142011	Spray Gun 4100 XTREMEGrav.2.20[64S]
10142012	Spray Gun 4100 XTREMEGrav.1.30[96]
